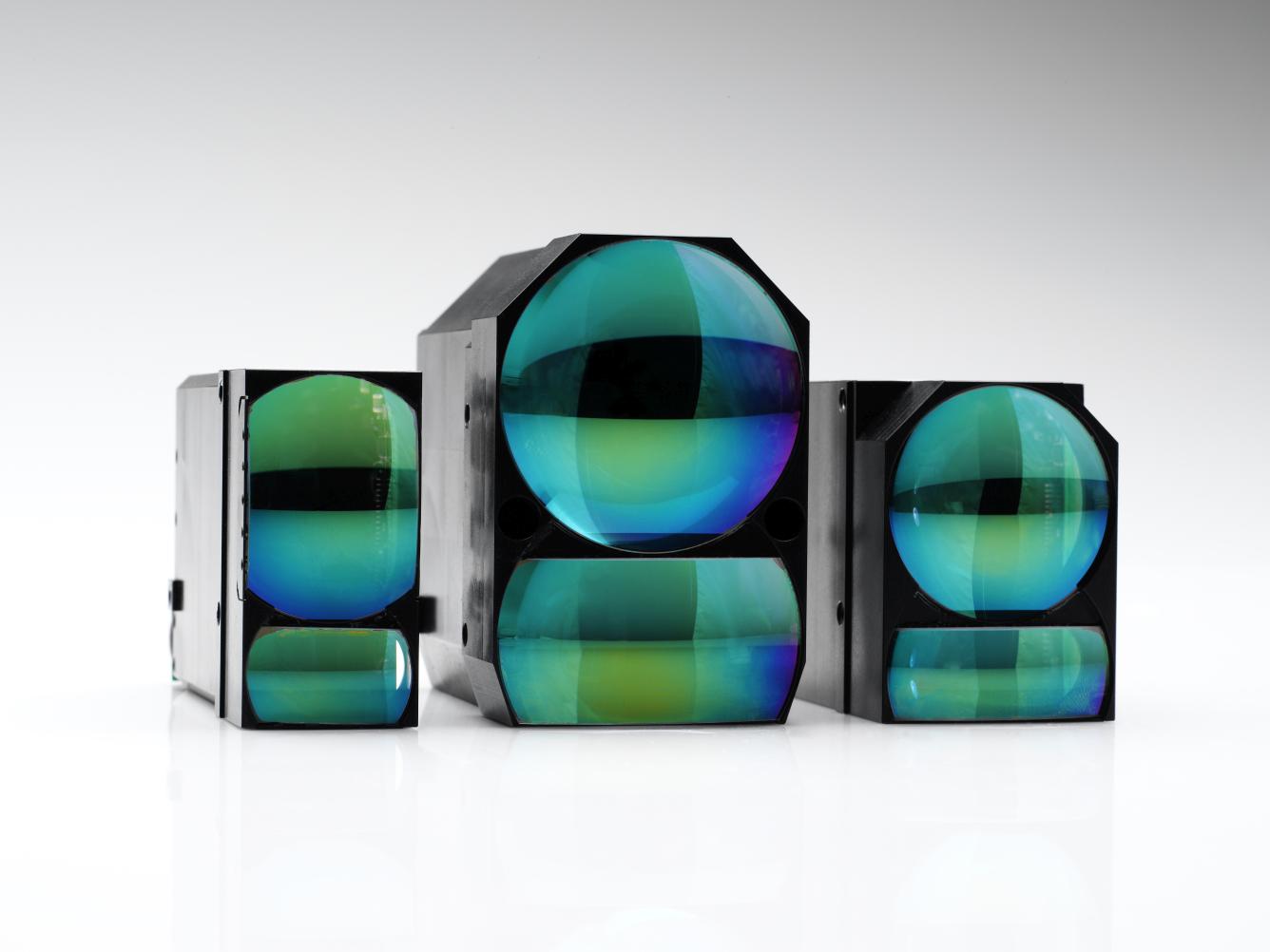

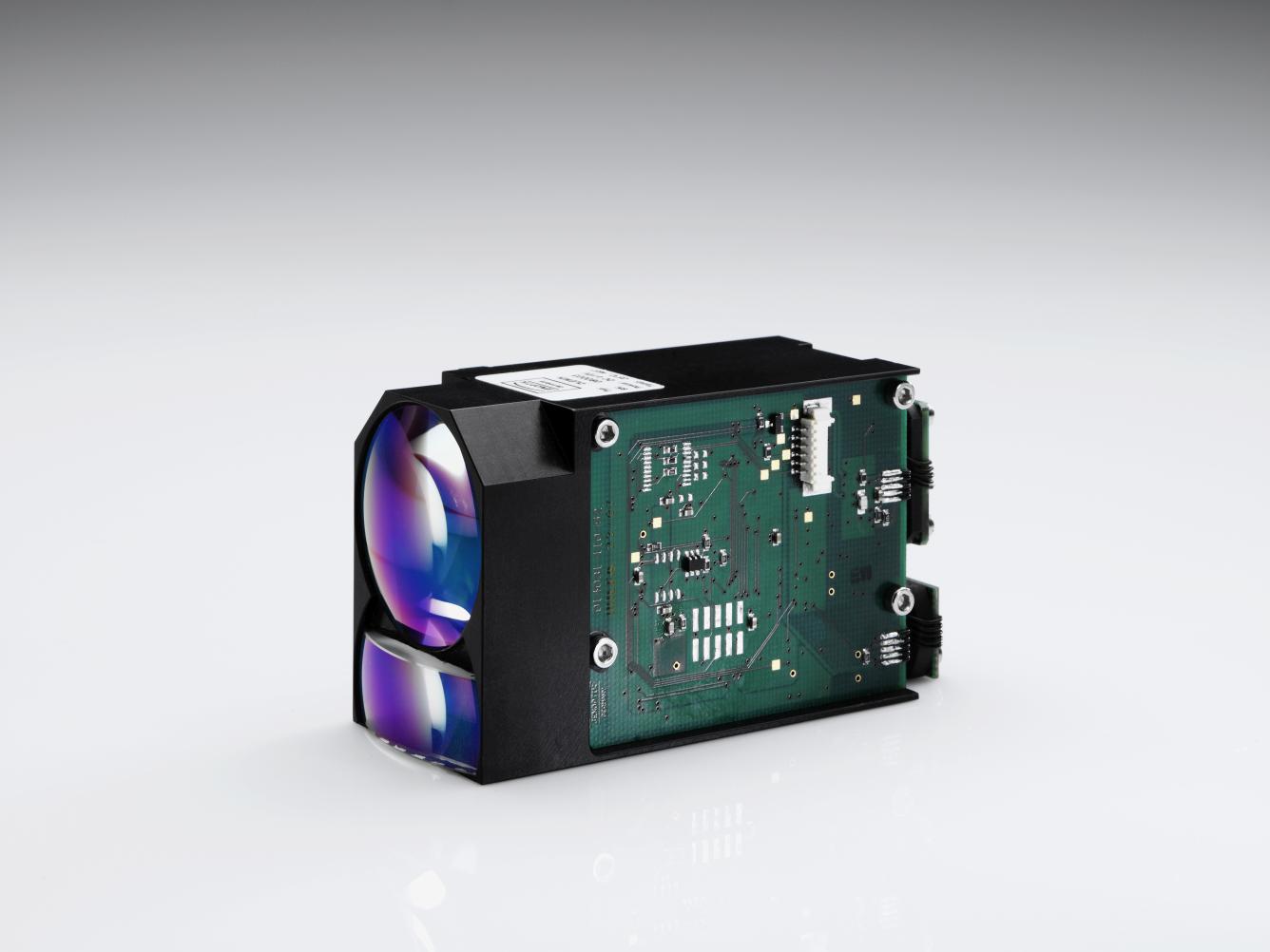

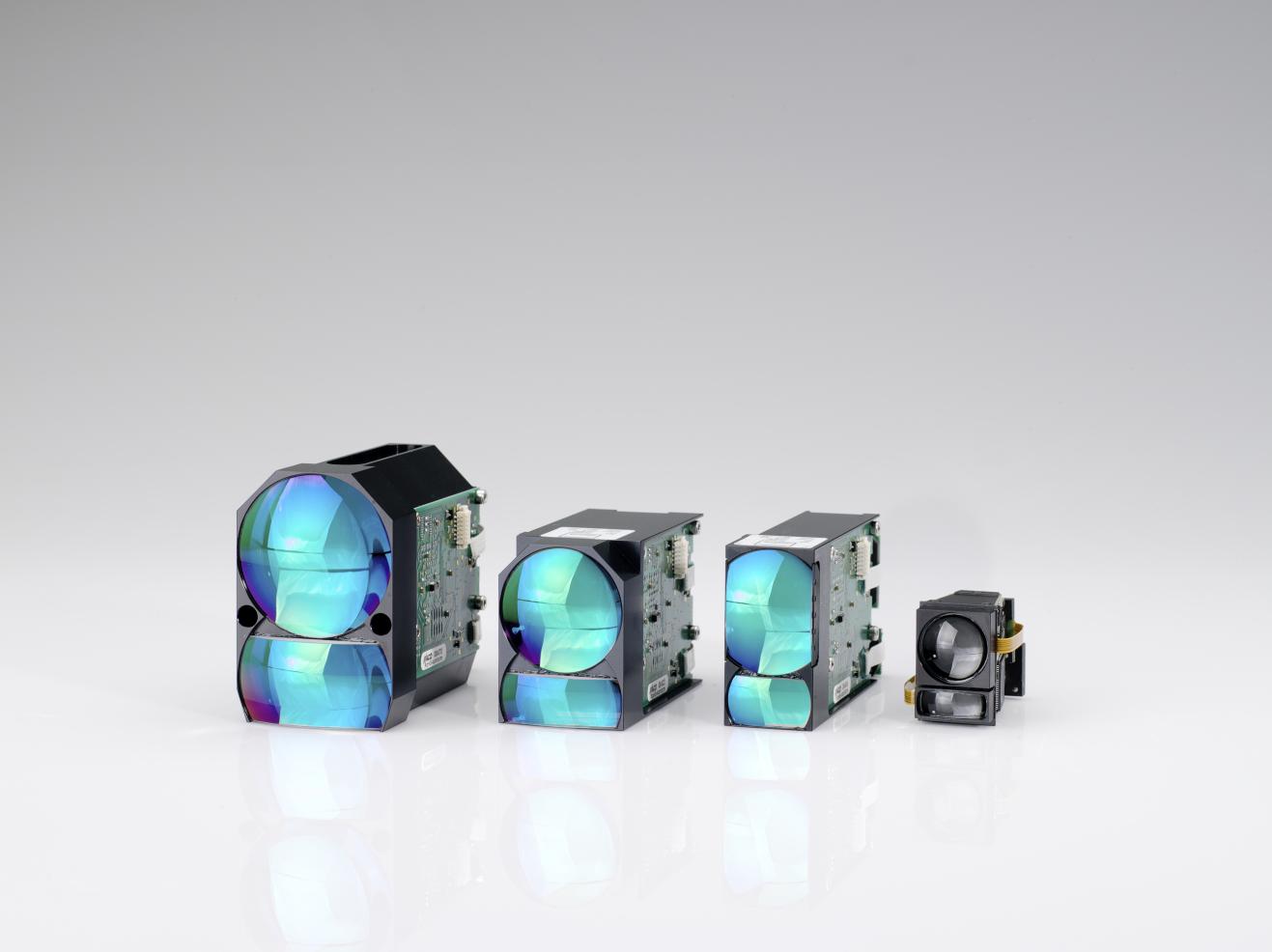

DLEM LRF FAMILY

Compact 1550nm Laser Rangefinder Modules

Small and powerful

With typical ranges between 1,500 and 4,000 meters and a net weight between 40 and 170 grams only, the eye-safe DLEM diode laser rangefinders range among the most lightweight and compact devices in their class.

DLEM rangefinder provide a measuring accuracy of better than one meter for a wide temperature range and also under low visibility conditions.

The compact design is ideally suited for integrating the DLEM diode laser rangefinder into mobile or stationary optronic measuring systems, for example reconnaissance or fire control systems.

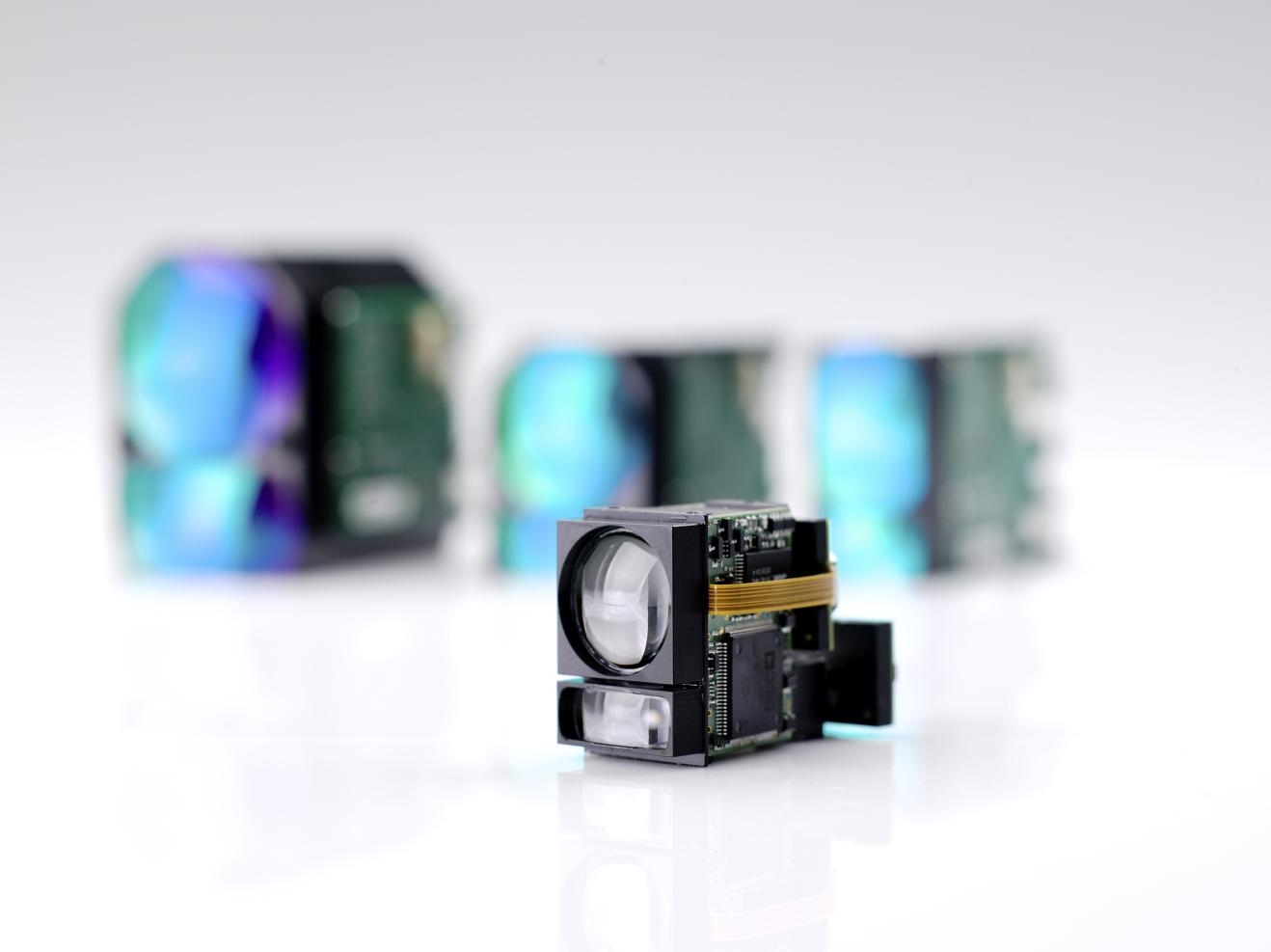

New: DLEM SR – the World’s Most Compact 1550nm Rangefinder

Discover the latest model of the proven DLEM product series: weighing less than 40 grams only, the new DLEM SR covers a measuring range of typically 1500 meters – with meter accuracy warranted for a temperature range between -40 and +75 °C. The ultra-compact module can comfortably hide behind a business card.

DLEM SR operates eyesafe and is not detectable by standard image intensifiers. The typical measuring rate of 1 Hz can optionally be extended to 25 Hz.

The rangefinder is shockproof and due to its low energy consumption optimally suited for integration into mobile or weapon mounted optronic systems.
